Photographs from the manufacturer specification are for reference. Final configuration, delivery timing and order terms are agreed individually.
Configuration options
7 m cargo platform
Platform dimensions 7000 × 2450 × 550 mm. Wheelbase 5175 + 1400 mm. SAG10 crane with four-section boom and front and rear outriggers.
Price on requestRequest this configuration ↗8.3 m cargo platform
Platform dimensions 8300 × 2450 × 550 mm. Wheelbase 5775 + 1400 mm. SAG10 crane with four-section boom and front and rear outriggers.
Price on requestRequest this configuration ↗Key specifications
- Series
- SAGMOTO X3
- Wheel configuration
- 6×4
- Engine
- YUCHAI YC6MK385-50
- Power
- 285 kW / 385 hp
- Emission standard
- Euro V
- Engine displacement
- 10.338 L
- Torque
- 1800 N·m at 1100–1500 rpm
- Transmission
- FAST 12JSD200T-B, PTO
- Loader crane
- SAG10, 10 t class, 4 sections
- Fuel tank
- 400 L, aluminium
- Tyres
- 315/80R22.5 / 18PR
- Steering
- Left-hand drive
Equipment
- Four-section boom and telescopic hydraulic cylinders.
- Cargo platform: 4 mm floor and 3 mm sides.

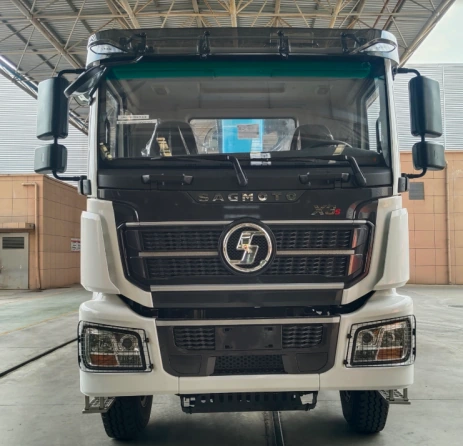

- Low-roof X3 cab with air-suspended driver seat.
- Automatic air conditioning, electric windows and Bluetooth.
Photographs
